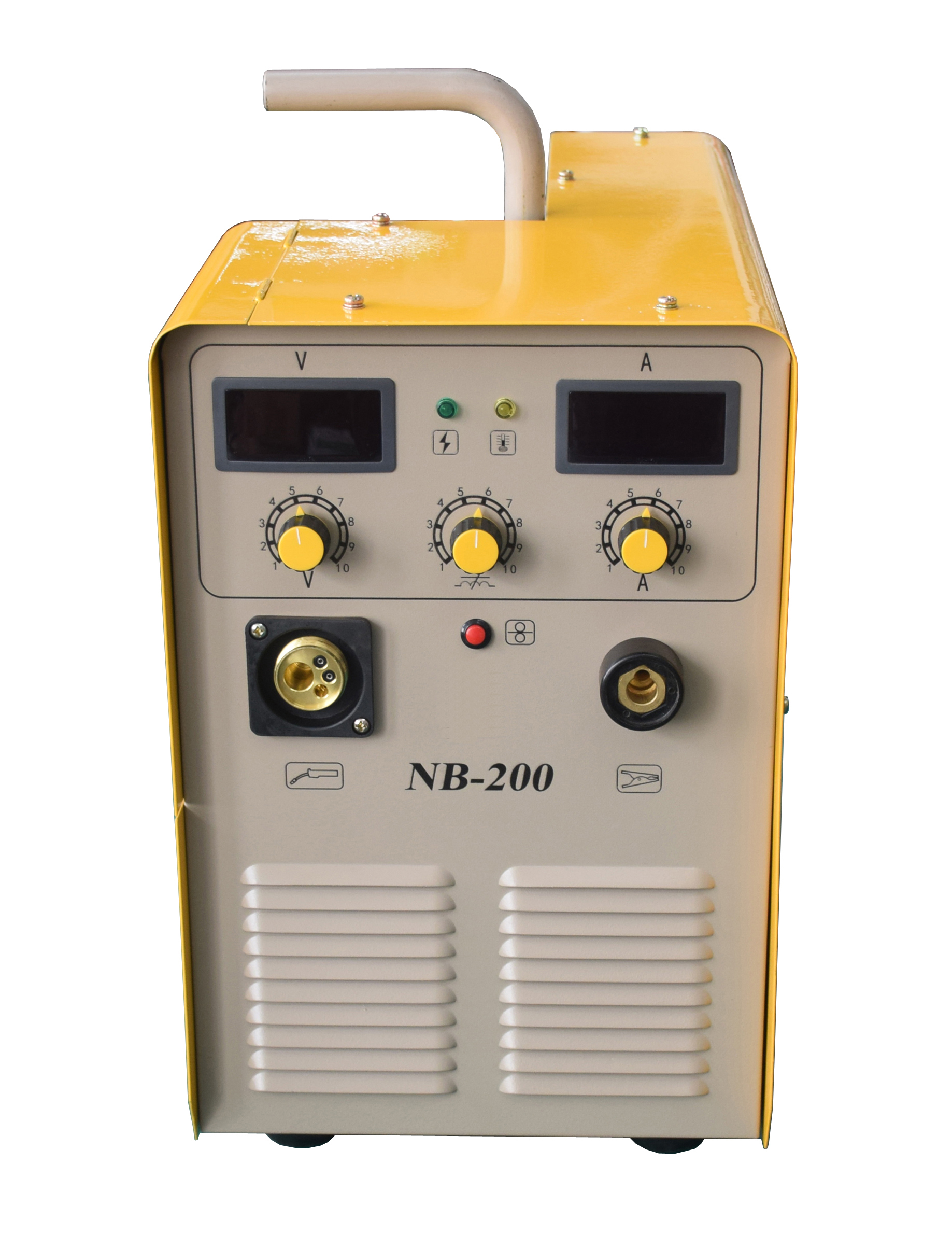

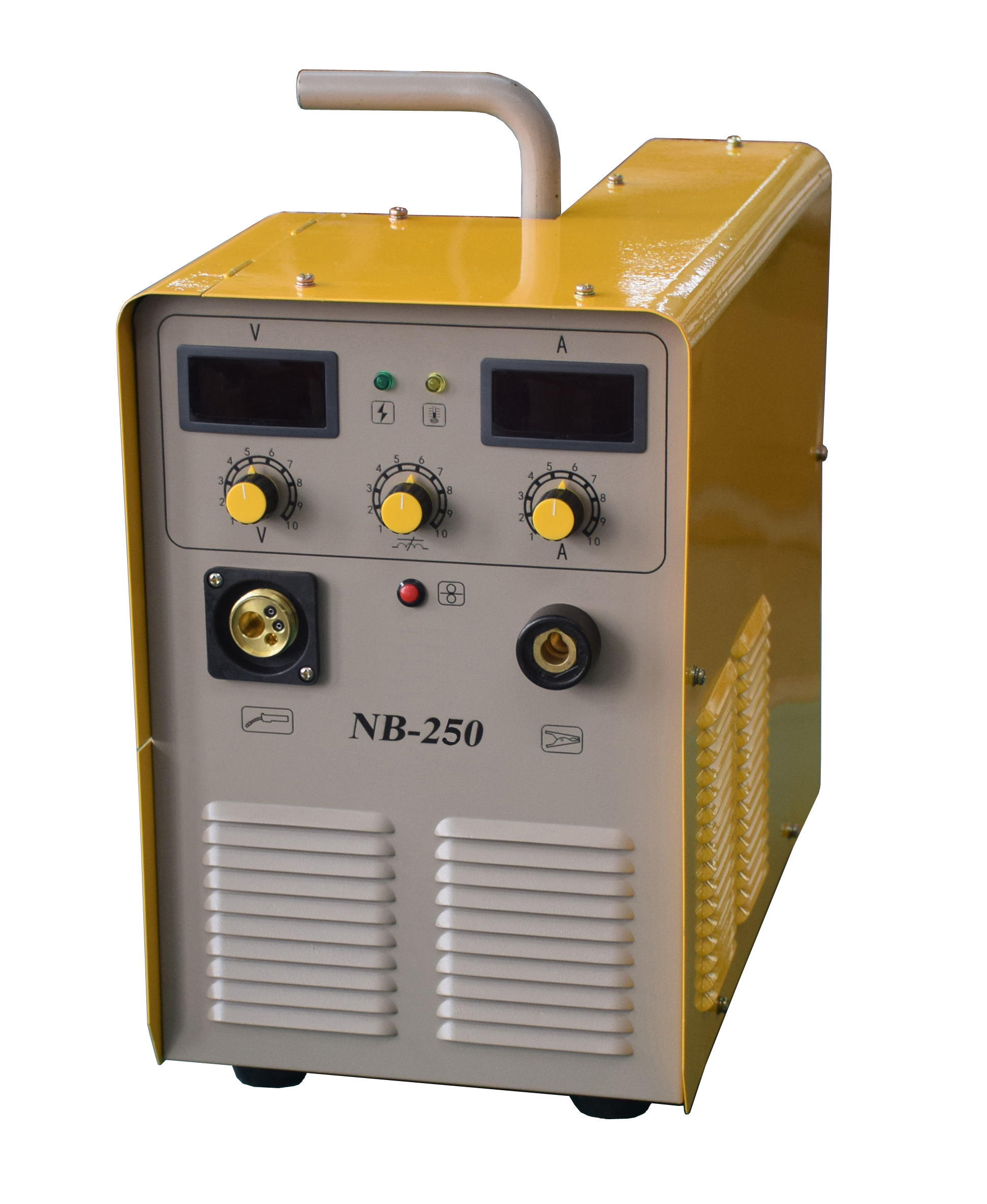

NBC-200Y/250Y
Integrated Inverter MIG/MAG Welder
NBC-200Y/250Y combines an integrated trolley design with built-in wire feeding. It is designed for stable low-spatter welding on thin and medium-thickness plates.
Product Details
Performance Features
1. Integrated trolley design with built-in wire feeder for easy movement. 2. IGBT inverter technology and current-mode control provide reliable quality and stable performance. 3. Closed-loop feedback and constant-voltage output provide strong resistance to grid voltage fluctuations. 4. Voltage preset function with digital display of voltage and current. 5. Electronic reactor control ensures stable welding, low spatter, deep weld pool and good bead formation. 6. Slow wire feeding at arc start and burn-back control improve ignition success rate. 7. Suitable for welding thin and medium-thickness plates.
Technical Specifications
| Item | NBC-200Y | NBC-250Y |
|---|---|---|
| Rated input voltage range | 1Φ AC220V ±10% | 3Φ AC380V ±10% |
| Frequency | 50/60 Hz | 50/60 Hz |
| Rated input capacity | 6.4 KVA | 9.2 KVA |
| Rated input current | 29 A | 14 A |
| Rated duty cycle | 60% | 60% |
| Welding current range | 50-200 A | 50-250 A |
| Welding voltage range | 15-26 V | 15-29 V |
| Applicable wire diameter | Φ0.8 / Φ1.0 mm | Φ0.8 / Φ1.0 mm |
| Wire-feeder type | built-in: push wire feeding | built-in: push wire feeding |
| Standard | GB15579 / IEC60974-1 | GB15579 / IEC60974-1 |
| Insulation class | F | F |
| Enclosure protection | IP21S | IP21S |
| Dimensions (DxWxH) | 890 x 300 x 620 mm | 890 x 300 x 620 mm |
| Weight | 24 kg | 26 kg |
Applications
- Industry applications: hardware processing, automotive repair, sheet metal fabrication and door/window/guardrail production
- Working conditions: mobile welding, unstable grid voltage areas and repeated arc-starting work
- Materials and welds: carbon steel thin plates, low-alloy medium plates, fillet welds and flat welds
