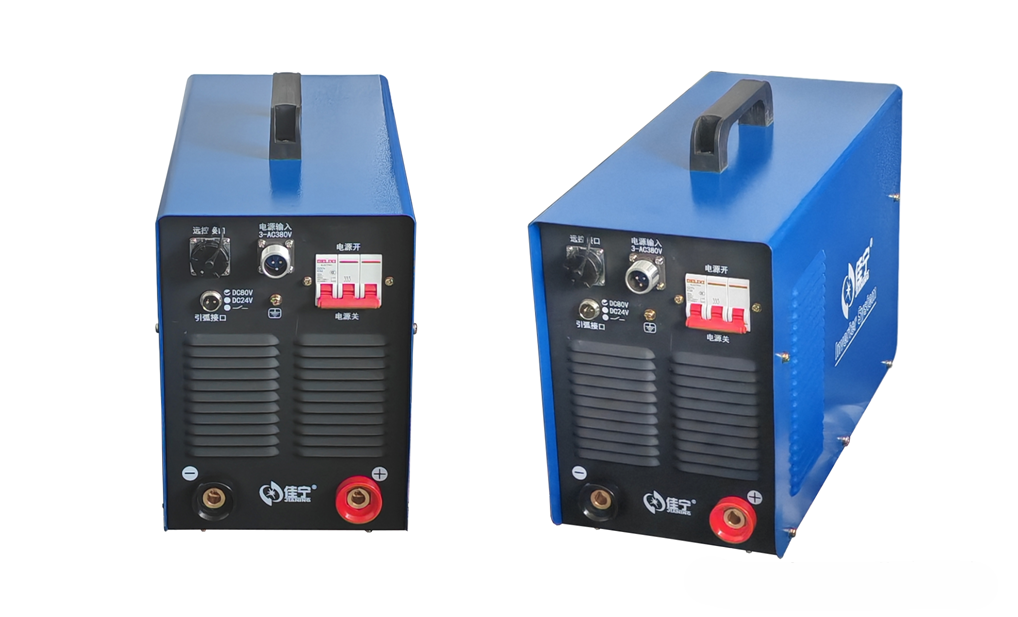

ARC-200N
Portable Inverter Arc Power Supply
ARC-200N is a compact inverter arc power supply with one-side wiring and multiple ignition modes. It is designed for integration into PVD coating systems and remote automated control.
IGBT inverter module, digital current display, portable structure
One-side wiring for cabinet installation and internal/external control
Contact, DC24V and DC75V ignition modes with remote parameter adjustment
Reliable output with clear and accurate current indication
Technical Consulting & Solution Support
For solution design, custom engineering and field issues, we respond within 24 hours with practical recommendations.
Product Details
Key Technical Features
1. Uses IGBT module inverter technology for high reliability. 2. Digital meter display shows output current accurately and clearly. 3. Input, output and control wiring are all routed from one side of the product. 4. Three ignition modes are available: contact, DC24V and DC75V. 5. Internal and external control functions support remote adjustment of operating parameters.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated input voltage | AC380V |
| Phase | 3Φ |
| Input voltage range | 380V ± 10% |
| Frequency | 50Hz |
| Rated input capacity | 7.5KVA |
| Rated no-load voltage | 80V |
| Rated output current | 200A |
| Rated output voltage | 30V |
| Rated duty cycle | 80% |
| Output current range | 20-200A |
| Control method | IGBT inverter control |
| Ignition mode | contact/DC24V/DC80V |
| Cooling method | Forced air cooling |
| Insulation class | F |
| Enclosure protection | IP21S |
| Dimensions (mm) | W205 x H340 x D450 |
| Weight | 15kg |

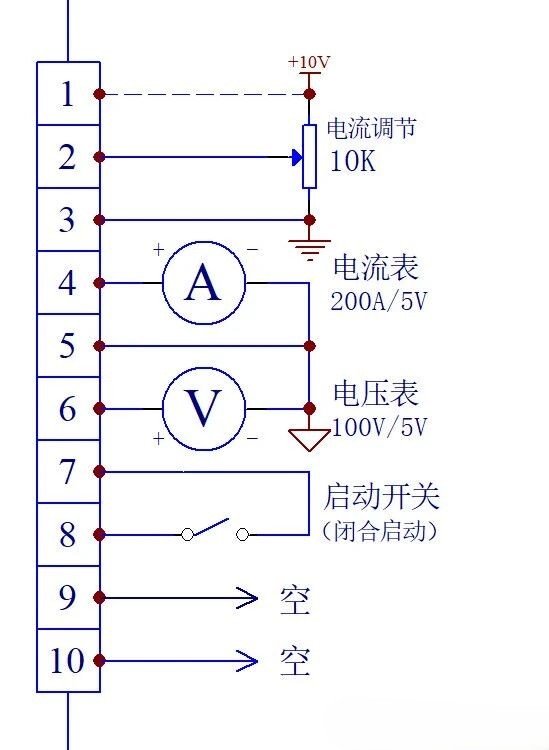

Remote Analog Control Interface
Output current can be adjusted through an external potentiometer, with remote voltage/current monitoring and start-stop control.
Applications
- Core applications: vacuum multi-arc ion plating, arc source driving power and cathodic arc evaporation
- Equipment integration: coating machine electrical cabinet integration and automated production line support
- Specific requirements: remote parameter monitoring, multiple ignition modes and space-constrained installation environments
- Process support: precise current control and specified-voltage ignition (24V/75V trigger)
